Electronics Studio: from simulation to a real board

Thu 15 Oct 2026

Electronics Studio runs your circuit as you wire it, with a multimeter and an oscilloscope. Program an Arduino, ESP32 or Raspberry Pi Pico in Blocks or in code and watch the program drive the parts.

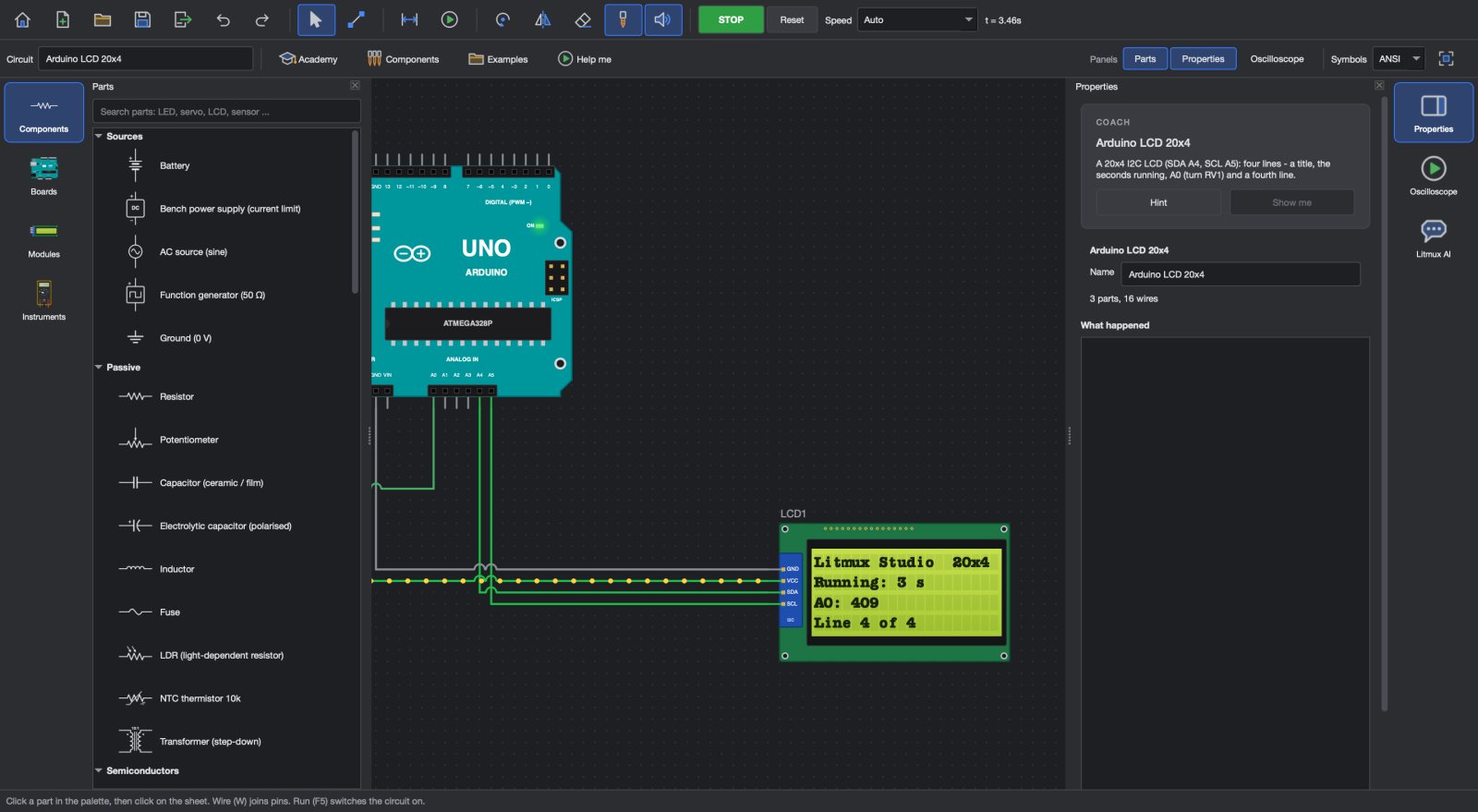

Electronics Studio running an Arduino with a 20x4 LCD

Upload to your own board

When it works on screen, plug in a real Uno, Nano or Mega and choose Upload to my board (USB). The compiler comes with Litmux Studio, so it works offline - in a lab, a workshop or at home.

40 ready-made examples

From a blinking LED to a plant waterer, a fan thermostat and relay modules switching mains lamps - each one compiles for a real board.

Litmux AI

Ask Litmux AI about your circuit: it reads the parts and the program, explains, finds mistakes and can build a circuit for you. New accounts get free credits to try it.
